SKF BT4B 328912 E3/C675

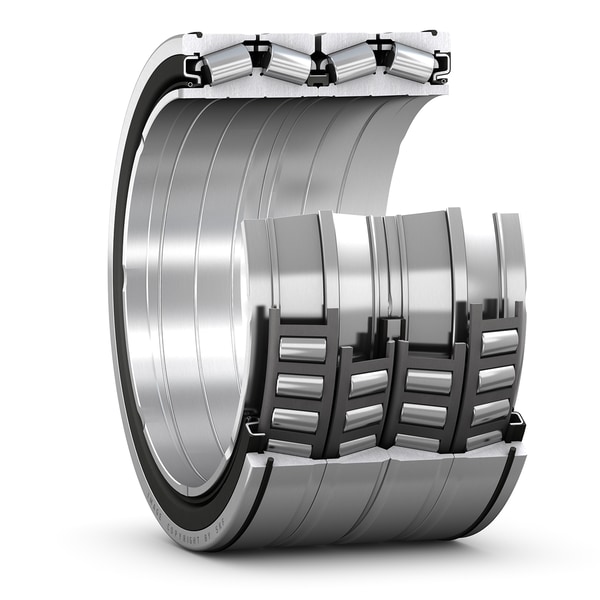

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
355.6 mm
Bore diameter
D
488.95 mm
Outside diameter
B
317.5 mm
Total bearing width over inner rings
T
317.5 mm
Total bearing width over outer rings
d1
382.0 mm
Abutment diameter shaft
D1
446.0 mm
Abutment diameter housing
r1,2
1.0 mm
Chamfer dimension inner ring
r3,4
3.3 mm
Outer ring radius (chamfer)
mass
179.0 kg
Product net weight
