SKF BT4B 332824 E/C475

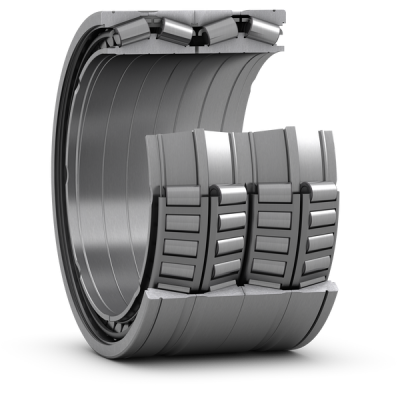

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
395.0 mm
Bore diameter
D
545.0 mm
Outside diameter
B
268.0 mm
Total bearing width over inner rings
T
288.9 mm
Total bearing width over outer rings
d1
435.0 mm
Abutment diameter shaft
D1
498.0 mm
Abutment diameter housing
r1,2
5.0 mm
Chamfer dimension inner ring
r3,4
10.0 mm
Outer ring radius (chamfer)
mass
192.0 kg
Product net weight
