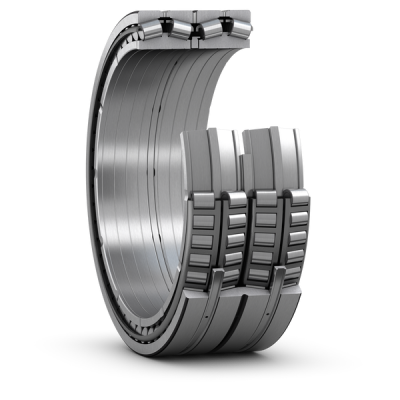

SKF BT4B 332981/HA4
Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
877.888 mm
Bore diameter
D
1220.0 mm
Outside diameter
B
844.55 mm
Total bearing width over inner rings
T
844.55 mm
Total bearing width over outer rings
d1
950.0 mm
Abutment diameter shaft
D1
1090.0 mm
Abutment diameter housing
r1,2
4.8 mm
Chamfer dimension inner ring
r3,4
12.7 mm
Outer ring radius (chamfer)
mass
3083.0 kg
Product net weight
