SKF BT4B 334048/HA1

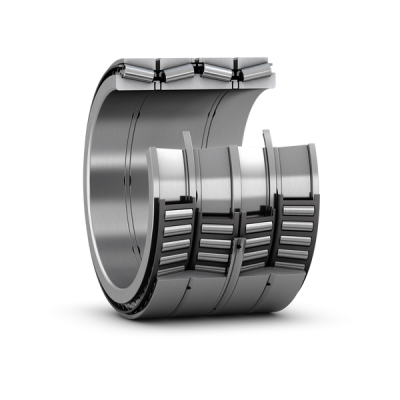

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
384.175 mm
Bore diameter
D
546.1 mm
Outside diameter
B
437.96 mm
Total bearing width over inner rings
T
384.175 mm
Total bearing width over outer rings
d1
455.0 mm
Abutment diameter shaft
D1
520.0 mm
Abutment diameter housing
r1,2
6.4 mm
Inner ring radius (chamfer)
mass
321.0 kg
Product net weight
