SKF BT4B 334056 B/HA1

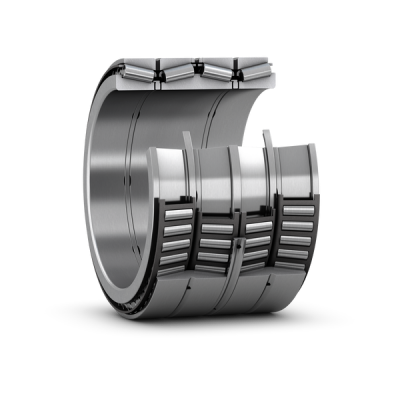

Four-row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
368.3 mm
Bore diameter
D
523.875 mm
Outside diameter
B
419.96 mm
Total bearing width over inner rings
T
366.712 mm
Total bearing width over outer rings
d1
432.0 mm
Abutment diameter shaft
D1
499.0 mm
Abutment diameter housing
r1,2
3.3 mm
Inner ring radius (chamfer)
r3,4
0.4 mm
Chamfer dimension outer ring
mass
303.0 kg
Product net weight
