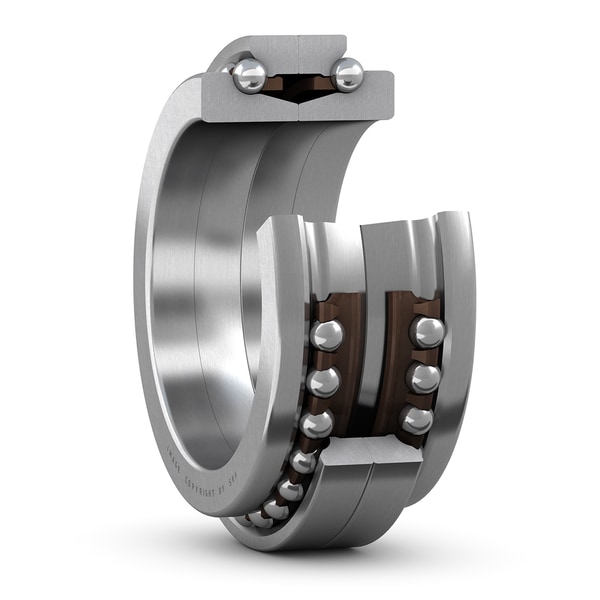

SKF BTW 110 CTN9/SP
Super-precision, basic design double direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
110.0 mm
Bore diameter
D
170.0 mm
Outside diameter
H
72.0 mm
Height
d1
145.0 mm
Shoulder diameter shaft washer (high shoulder)
D1
159.8 mm
Shoulder diameter housing washer (low shoulder)
2C
36.0 mm
Height of both housing washers
r1,2
2.0 mm
Shaft washer chamfer radius
r3,4
1.0 mm
Housing washer small chamfer radius
mass
4.7 kg
Product net weight
Abutment dimensions
da
132.0 mm
Abutment diameter shaft
Da
159.8 mm
Abutment diameter shaft
Da
161.0 mm
Abutment diameter housing
ra
2.0 mm
Fillet radius
rb
1.0 mm
Fillet radius
