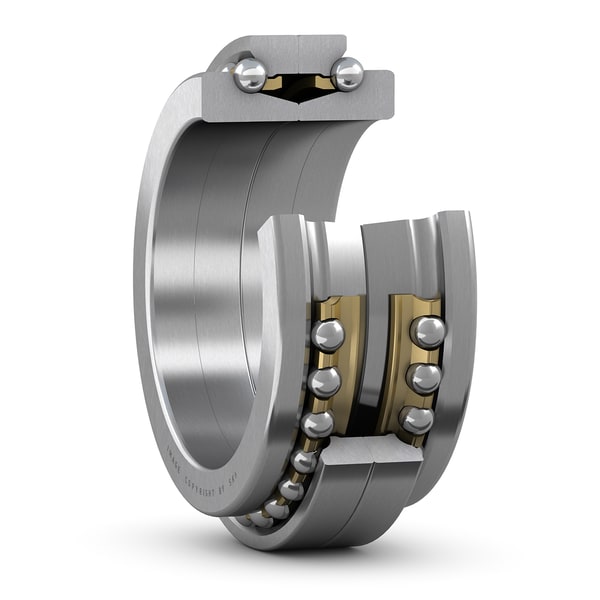

SKF BTW 150 CM/SP
Super-precision, basic design double direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
150.0 mm
Bore diameter
D
225.0 mm
Outside diameter
H
90.0 mm
Height
d1
193.7 mm
Shoulder diameter shaft washer (high shoulder)
D1
212.4 mm
Shoulder diameter housing washer (low shoulder)
2C
45.0 mm
Height of both housing washers
r1,2
2.1 mm
Shaft washer chamfer radius
r3,4
1.0 mm
Housing washer small chamfer radius
mass
10.6 kg
Product net weight
Abutment dimensions
da
178.0 mm
Abutment diameter shaft
Da
212.4 mm
Abutment diameter shaft
Da
213.0 mm
Abutment diameter housing
ra
2.0 mm
Fillet radius
rb
1.0 mm
Fillet radius
