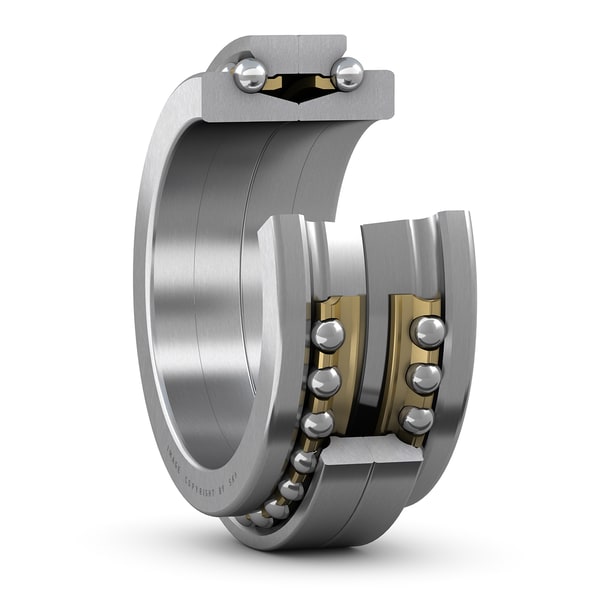

SKF BTW 200 CM/SP
Super-precision, basic design double direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
200.0 mm
Bore diameter
D
310.0 mm
Outside diameter
H
132.0 mm
Height
d1
263.9 mm
Shoulder diameter shaft washer (high shoulder)
D1
291.0 mm
Shoulder diameter housing washer (low shoulder)
2C
66.0 mm
Height of both housing washers
r1,2
2.1 mm
Shaft washer chamfer radius
r3,4
1.0 mm
Housing washer small chamfer radius
mass
31.0 kg
Product net weight
Abutment dimensions
da
236.0 mm
Abutment diameter shaft
Da
291.0 mm
Abutment diameter shaft
Da
292.0 mm
Abutment diameter housing
ra
2.0 mm
Fillet radius
rb
1.0 mm
Fillet radius
