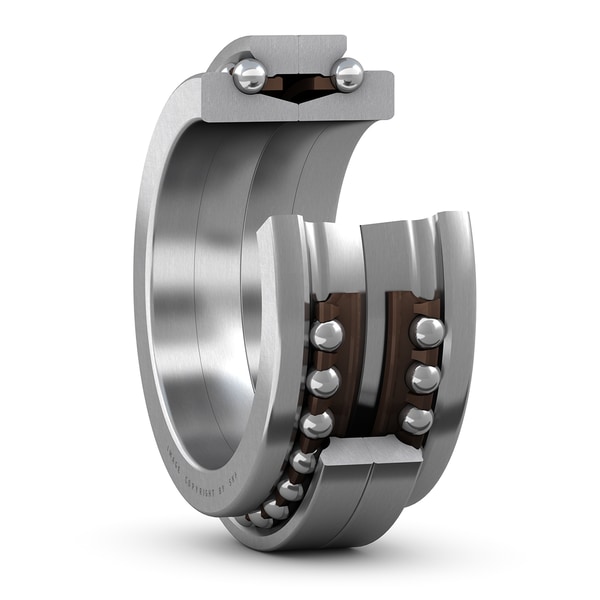

SKF BTW 50 CTN9/SP
Super-precision, basic design double direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
80.0 mm
Outside diameter
H
38.0 mm
Height
d1
67.5 mm
Shoulder diameter shaft washer (high shoulder)
D1
74.9 mm
Shoulder diameter housing washer (low shoulder)
2C
19.0 mm
Height of both housing washers
r1,2
1.0 mm
Shaft washer chamfer radius
r3,4
0.3 mm
Housing washer small chamfer radius
mass
0.578 kg
Product net weight
Abutment dimensions
da
61.0 mm
Abutment diameter shaft
Da
74.9 mm
Abutment diameter shaft
Da
76.0 mm
Abutment diameter housing
ra
1.0 mm
Fillet radius
rb
0.3 mm
Fillet radius
