SKF BTW 65 CTN9/SP

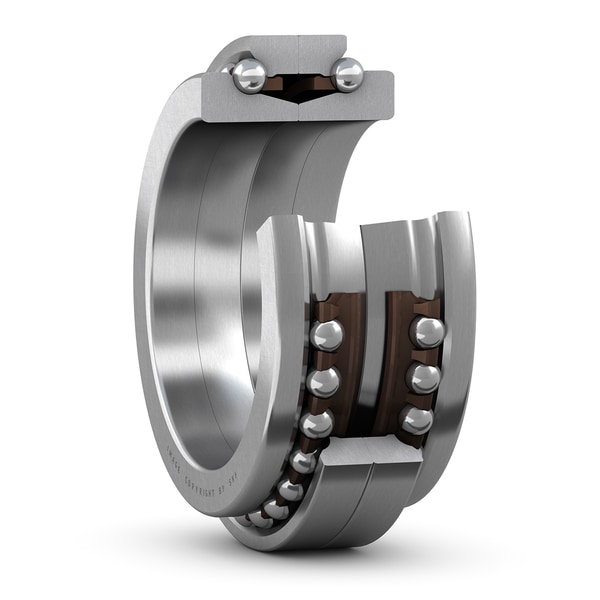

Super-precision, basic design double direction angular contact thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
65.0 mm
Bore diameter
D
100.0 mm
Outside diameter
H
44.0 mm
Height
d1
85.2 mm
Shoulder diameter shaft washer (high shoulder)
D1
94.0 mm
Shoulder diameter housing washer (low shoulder)
2C
22.0 mm
Height of both housing washers
r1,2
1.1 mm
Shaft washer chamfer radius
r3,4
0.6 mm
Housing washer small chamfer radius
mass
0.997 kg
Product net weight
Abutment dimensions
da
78.0 mm
Abutment diameter shaft
Da
94.0 mm
Abutment diameter shaft
Da
95.0 mm
Abutment diameter housing
ra
1.0 mm
Fillet radius
rb
0.6 mm
Fillet radius
