Home Brand SKF Bearings Roller bearings CARB toroidal roller bearings

C 2211 KV

MORE +

CLOSE +

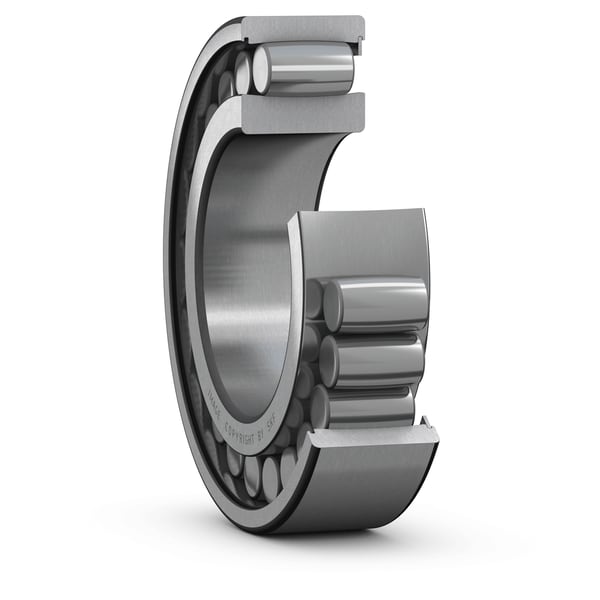

SKF C 2211 KV

CARB toroidal roller bearings

Full complement CARB toroidal roller bearing with tapered bore (1:12)

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 2211 KV

CARB toroidal roller bearings

Dimensions

d 55.0 mm Bore diameter

D 100.0 mm Outside diameter

B 25.0 mm Width

d₂ 65.8 mm Shoulder diameter of inner ring

D₁ 86.7 mm Shoulder or recess diameter of outer ring

s₁ 8.6 mm Permissible axial displacement

s₂ 5.4 mm Permissible axial displacement

r_1,2 1.5 mm Chamfer dimension

mass 0.775 kg Product net weight
