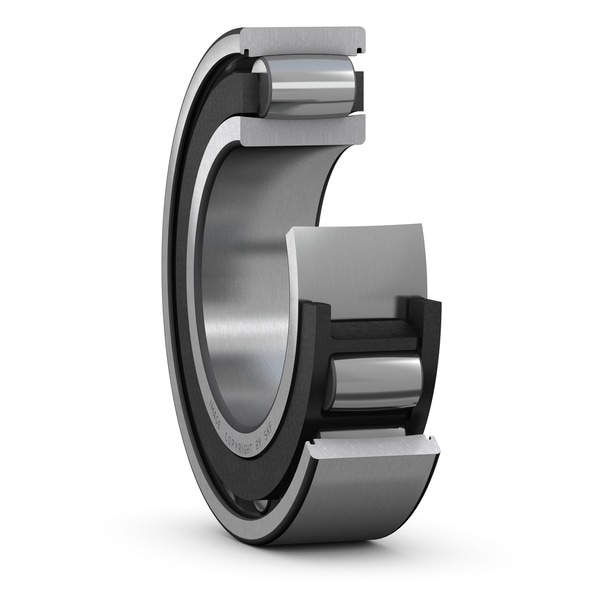

SKF C 2211 TN9
CARB toroidal roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
55.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
25.0 mm
Width
d2
65.8 mm
Shoulder diameter of inner ring
D1
86.7 mm
Shoulder or recess diameter of outer ring
s1
8.6 mm
Permissible axial displacement
r1,2
1.5 mm
Chamfer dimension
mass
0.788 kg
Product net weight
