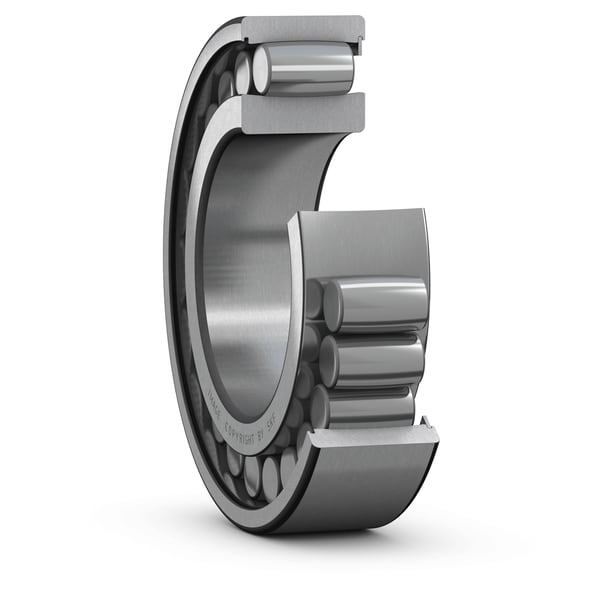

SKF C 2215 KV

CARB toroidal roller bearings

Full complement CARB toroidal roller bearing with tapered bore (1:12)

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 2215 KV

CARB toroidal roller bearings

Dimensions

d 75.0 mm Bore diameter

D 130.0 mm Outside diameter

B 31.0 mm Width

d₂ 88.5 mm Shoulder diameter of inner ring

D₁ 116.0 mm Shoulder or recess diameter of outer ring

s₁ 9.6 mm Permissible axial displacement

s₂ 5.3 mm Permissible axial displacement

r_1,2 1.5 mm Chamfer dimension

mass 1.53 kg Product net weight
