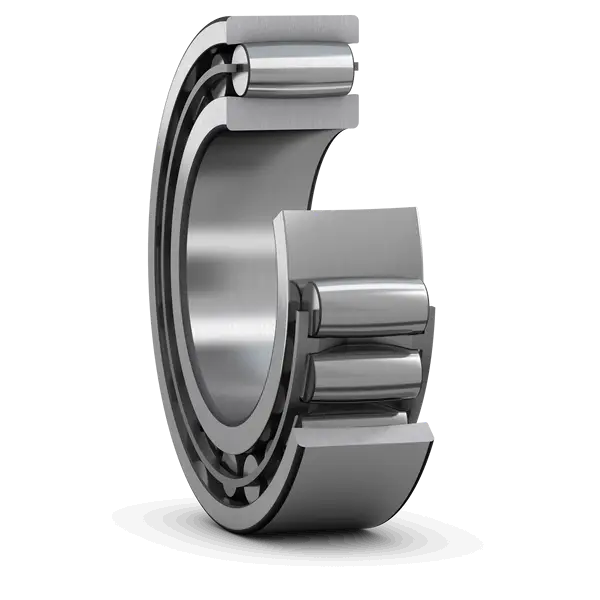

SKF C 2222

CARB toroidal roller bearings

CARB toroidal roller bearing

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 2222

CARB toroidal roller bearings

Dimensions

d 110.0 mm Bore diameter

D 200.0 mm Outside diameter

B 53.0 mm Width

d₂ 132.0 mm Shoulder diameter of inner ring

D₁ 176.0 mm Shoulder or recess diameter of outer ring

s₁ 11.1 mm Permissible axial displacement

r_1,2 2.1 mm Chamfer dimension

mass 6.72 kg Product net weight
