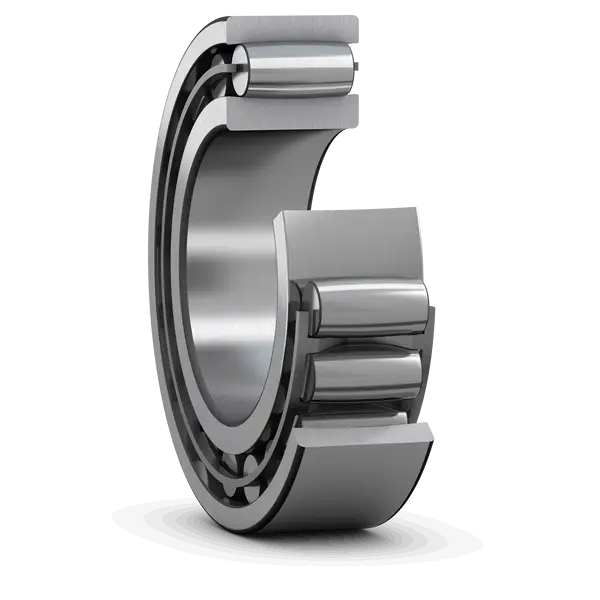

SKF C 2314

CARB toroidal roller bearings

CARB toroidal roller bearing

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 2314

CARB toroidal roller bearings

Dimensions

d 70.0 mm Bore diameter

D 150.0 mm Outside diameter

B 51.0 mm Width

d₂ 91.4 mm Shoulder diameter of inner ring

D₁ 130.0 mm Shoulder or recess diameter of outer ring

s₁ 9.1 mm Permissible axial displacement

r_1,2 2.1 mm Chamfer dimension

mass 4.22 kg Product net weight
