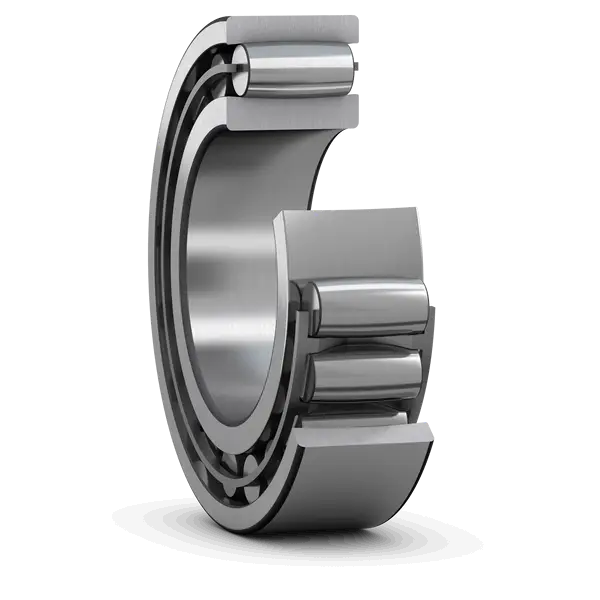

SKF C 3038

CARB toroidal roller bearings

CARB toroidal roller bearing

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 3038

CARB toroidal roller bearings

Dimensions

d 190.0 mm Bore diameter

D 290.0 mm Outside diameter

B 75.0 mm Width

d₂ 225.0 mm Shoulder diameter of inner ring

D₁ 266.0 mm Shoulder or recess diameter of outer ring

s₁ 16.1 mm Permissible axial displacement

r_1,2 2.1 mm Chamfer dimension

mass 17.6 kg Product net weight
