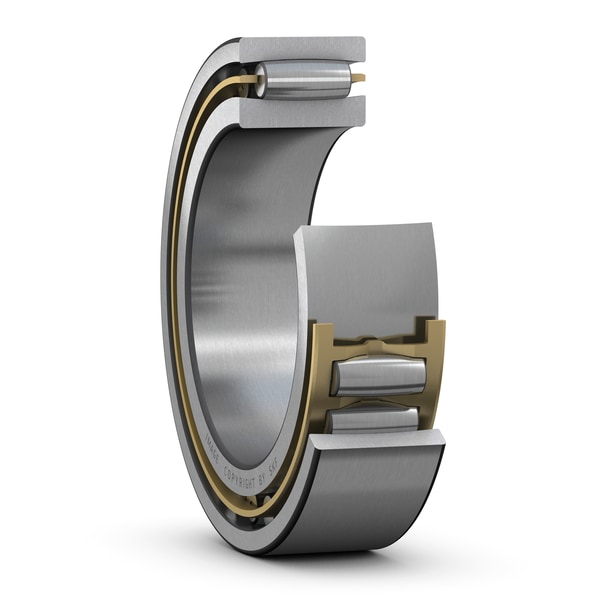

SKF C 3060 M

CARB toroidal roller bearings

CARB toroidal roller bearing

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 3060 M

CARB toroidal roller bearings

Dimensions

d 300.0 mm Bore diameter

D 460.0 mm Outside diameter

B 118.0 mm Width

d₂ 351.0 mm Shoulder diameter of inner ring

D₁ 417.0 mm Shoulder or recess diameter of outer ring

s₁ 20.0 mm Permissible axial displacement

r_1,2 4.0 mm Chamfer dimension

mass 72.0 kg Product net weight
