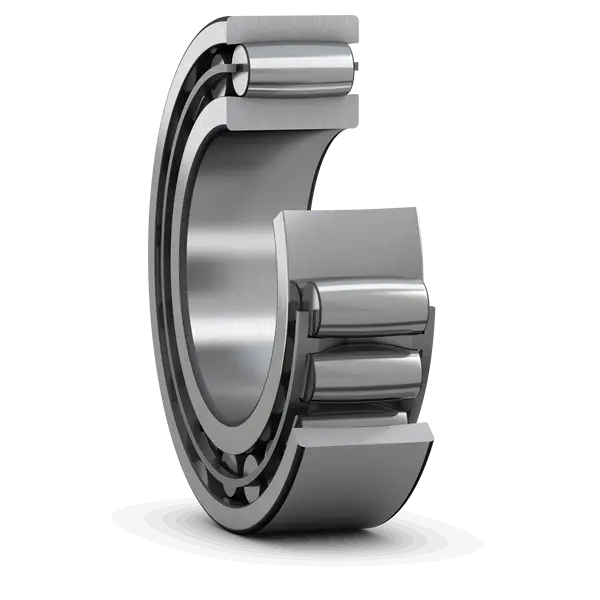

SKF C 3148 K
CARB toroidal roller bearing with tapered bore (1:12)
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
240.0 mm
Bore diameter
D
400.0 mm
Outside diameter
B
128.0 mm
Width
d2
281.0 mm
Shoulder diameter of inner ring
D1
357.0 mm
Shoulder or recess diameter of outer ring
s1
20.4 mm
Permissible axial displacement
r1,2
4.0 mm
Chamfer dimension
mass
62.6 kg
Product net weight
