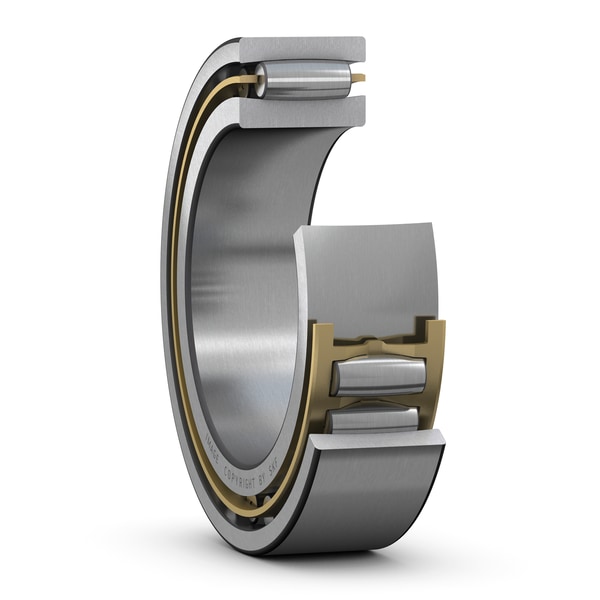

SKF C 39/630 KM

CARB toroidal roller bearings

CARB toroidal roller bearing with tapered bore (1:12)

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

C 39/630 KM

CARB toroidal roller bearings

Dimensions

d 630.0 mm Bore diameter

D 850.0 mm Outside diameter

B 165.0 mm Width

d₂ 699.0 mm Shoulder diameter of inner ring

D₁ 785.0 mm Shoulder or recess diameter of outer ring

s₁ 35.5 mm Permissible axial displacement

r_1,2 6.0 mm Chamfer dimension

mass 265.0 kg Product net weight
