SKF DTW-50X58X5-J2G

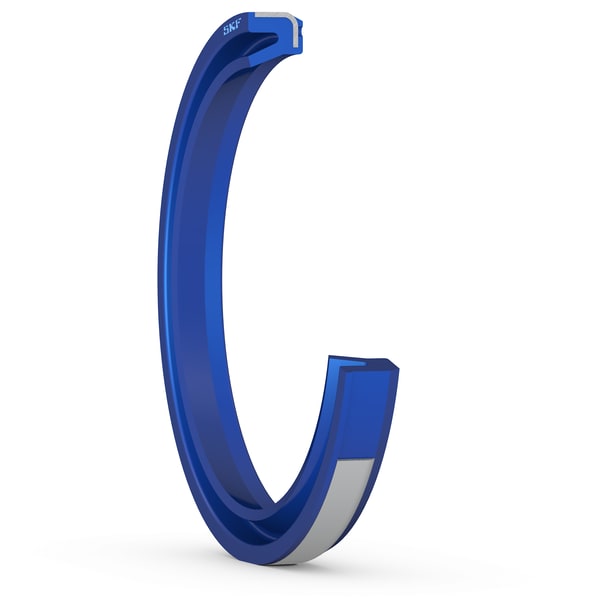

Polyurethane snap-in wiper seal with a single lip, two additional static lips and notches on the inside edge
Dimensions
SKF DTW-50X58X5-J2G Wiper Seal Overview
The SKF DTW-50X58X5-J2G is part of the SKF Wiper seals series within the hydraulic seals category. It is described as a polyurethane snap-in wiper seal with a single lip, two additional static lips, and notches on the inside edge.
What type of seal is the DTW-50X58X5-J2G?
The supplied data identifies it as an SKF wiper seal for hydraulic-seal applications. Its listed design features include a snap-in construction, one wiping lip, two static lips, and internal-edge notches.
Stated Dimensions and Weight
- Rod diameter d: 50.0 mm
- Diameter D: 58.0 mm
- Housing groove diameter D2: 54.0 mm
- Housing shoulder diameter L: 5.0 mm
- Housing groove width S: 4.0 mm
- Radial depth R: 0.3 mm
- Groove radius C: 4.5 mm
- Product net weight: 0.0039 kg
What are the main DTW-50X58X5-J2G measurements?
The primary listed measurements are a 50.0 mm rod diameter and a 58.0 mm D dimension. Additional groove and installation dimensions are provided above for selecting or checking the specified housing arrangement.
Polyurethane Material and Design Details
The product data lists the material as Polyurethane (TPU U-1003). The seal uses a snap-in profile and combines a single lip with two additional static lips, while notches are specified on the inside edge.
What material is specified for this SKF wiper seal?
The supplied specification states Polyurethane (TPU U-1003). No additional material properties, certifications, or performance claims are included in the available product data.
