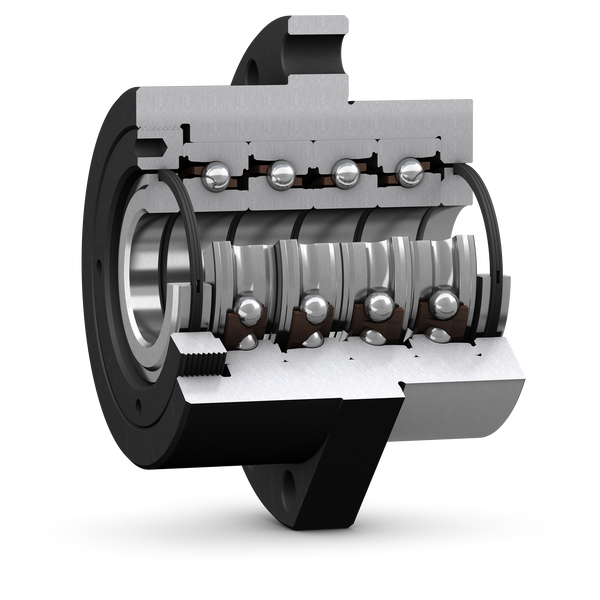

SKF FBSA 206/QBCB
Super-precision cartridge units with a flanged housing for screw drives
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
120.0 mm
Outside diameter
A
84.0 mm
Overall height
A1
82.0 mm
Distance over distance ring side faces
A2
32.0 mm
Distance flange position from side face
A3
15.0 mm
Flange width
d1
41.0 mm
Shoulder diameter of laminar ring
D1
88.0 mm
Cartridge outside diameter at flange side
D2
80.0 mm
Cartridge outside diameter at housing seat
D3
50.0 mm
Lock nut inner diameter
mass
3.36 kg
Product net weight
