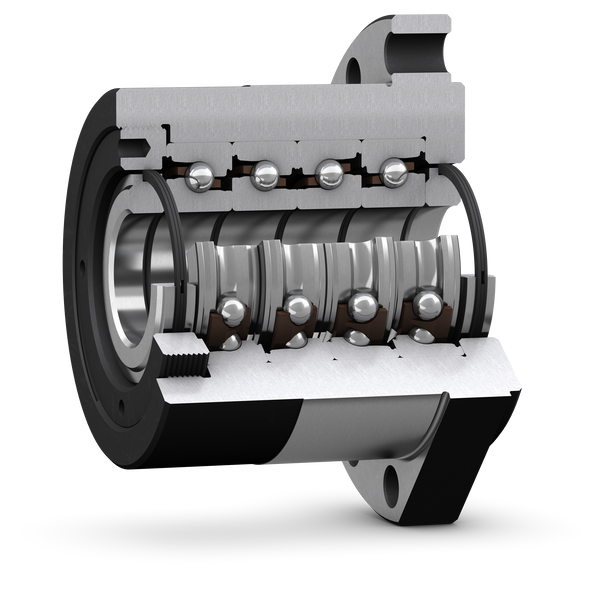

SKF FBSA 208 A/QBCA
Super-precision cartridge units with a flanged housing for screw drives
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
40.0 mm
Bore diameter
D
165.0 mm
Outside diameter
A
106.0 mm
Overall height
A1
104.0 mm
Distance over distance ring side faces
A2
4.0 mm
Distance flange position from side face
A3
24.0 mm
Flange width
A4
1.0 mm
Standout of lock nut
C
35.0 mm
Length of the housing seat surface
d1
55.0 mm
Shoulder diameter of laminar ring
D2
128.0 mm
Cartridge outside diameter at housing seat
D3
66.0 mm
Lock nut inner diameter
mass
10.2 kg
Product net weight
