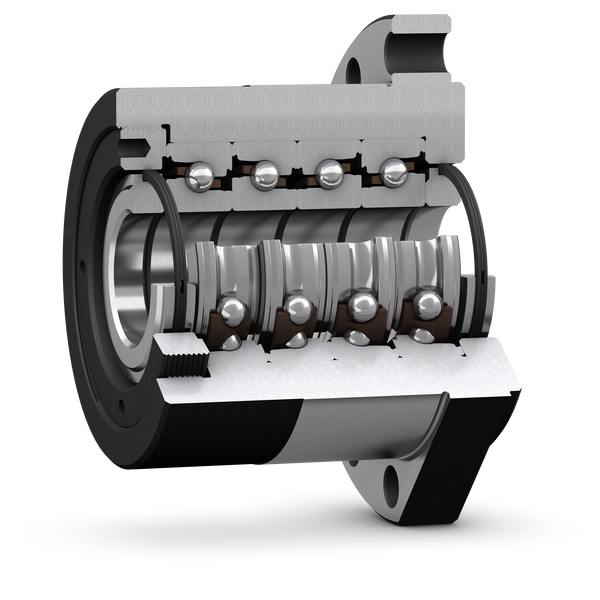

SKF FBSA 212 A/QBTG690
Super-precision cartridge units with a flanged housing for screw drives
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
60.0 mm
Bore diameter
D
185.0 mm
Outside diameter
A
114.0 mm
Overall height
A1
114.0 mm
Distance over distance ring side faces
A2
20.0 mm
Distance flange position from side face
A3
25.0 mm
Flange width
A4
1.0 mm
Standout of lock nut
C
40.0 mm
Length of the housing seat surface
d1
80.0 mm
Shoulder diameter of laminar ring
D2
145.0 mm
Cartridge outside diameter at housing seat
D3
92.0 mm
Lock nut inner diameter
mass
12.7 kg
Product net weight
