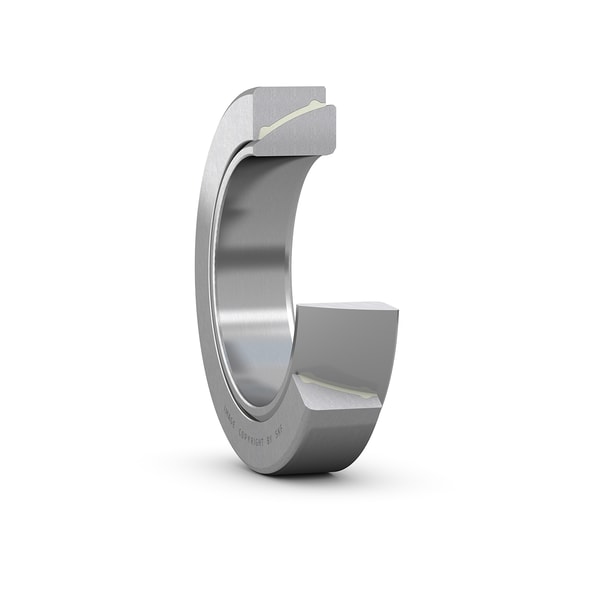

SKF GAC 70 F
Angular contact spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
70.0 mm
Bore diameter
D
110.0 mm
Outside diameter
T
25.0 mm
Width
α
2.3 °
Angle of tilt
dk
102.0 mm
Raceway diameter inner ring
B
25.0 mm
Width inner ring
C
23.0 mm
Width outer ring
r1
1.5 mm
Chamfer dimension bore/large side face
r2
0.6 mm
Chamfer dimension bore/small side face
s
7.2 mm
Distance sphere diameter centre - large inner ring side face
mass
1.01 kg
Product net weight
