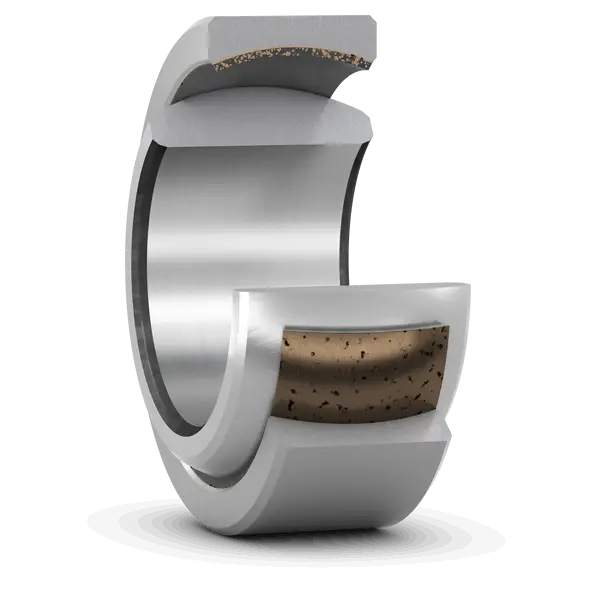

SKF GE 15 C
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
15.0 mm
Bore diameter
D
26.0 mm
Outside diameter
B
12.0 mm
Width
C
9.0 mm
Width outer ring
α
8.0 °
Angle of tilt
dk
22.0 mm
Raceway diameter inner ring
r1
0.3 mm
Chamfer dimension bore
r2
0.3 mm
Chamfer dimension outer ring
mass
0.025 kg
Product net weight
