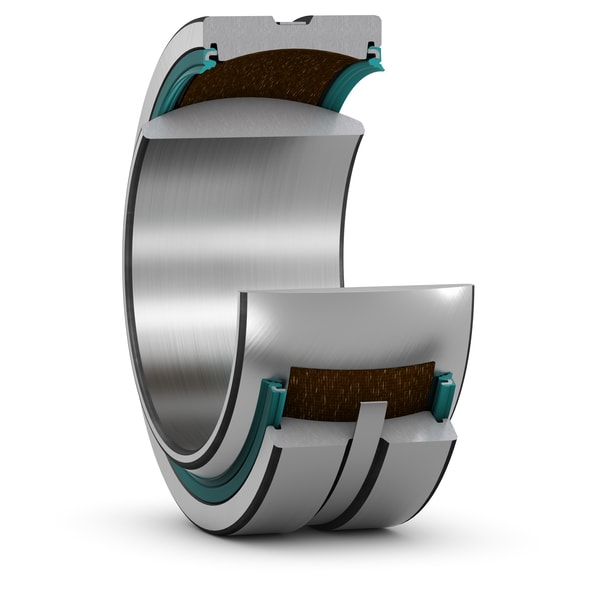

SKF GE 180 TXG3A-2LS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
180.0 mm
Bore diameter
D
260.0 mm
Outside diameter
B
105.0 mm
Width
C
80.0 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
225.0 mm
Raceway diameter inner ring
r1
1.1 mm
Chamfer dimension bore
r2
1.1 mm
Chamfer dimension outer ring
mass
18.5 kg
Product net weight
