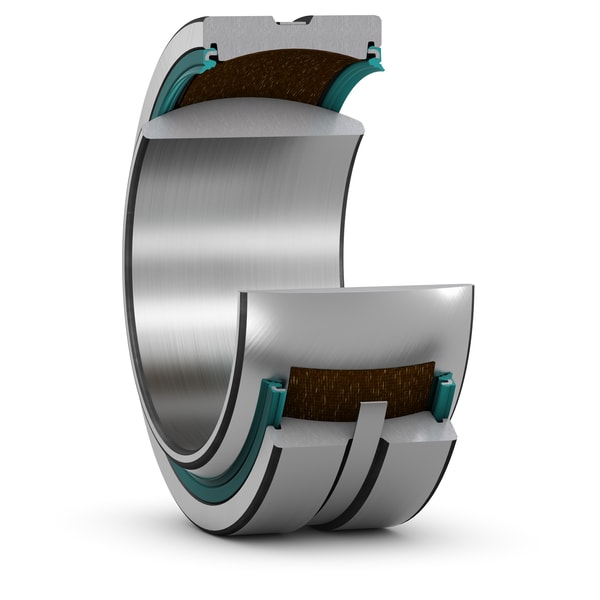

SKF GE 280 TXA-2LS
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
280.0 mm
Bore diameter
D
400.0 mm
Outside diameter
B
155.0 mm
Width
C
120.0 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
350.0 mm
Raceway diameter inner ring
r1
1.1 mm
Chamfer dimension bore
r2
1.1 mm
Chamfer dimension outer ring
mass
64.3 kg
Product net weight
