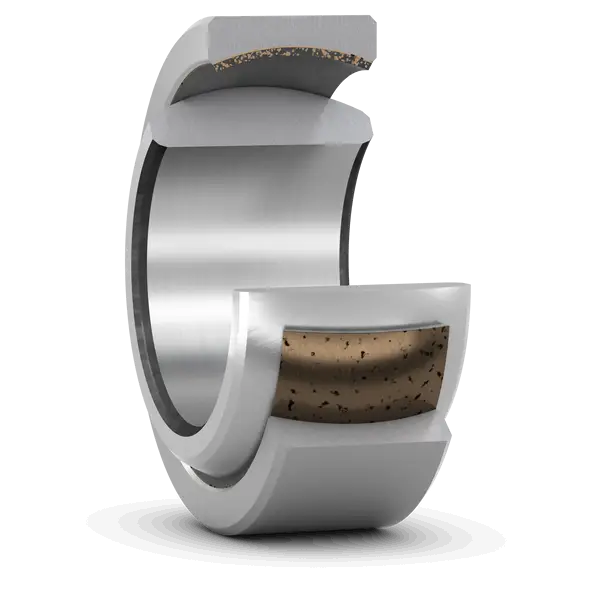

SKF GE 30 C
Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
22.0 mm
Width
C
18.0 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
40.7 mm
Raceway diameter inner ring
r1
0.6 mm
Chamfer dimension bore
r2
0.6 mm
Chamfer dimension outer ring
mass
0.148 kg
Product net weight
