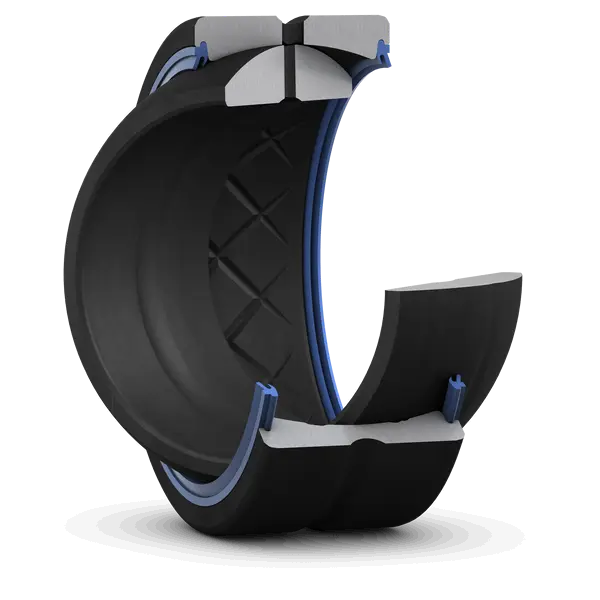

SKF GE 300 ESL-2RS
Radial spherical plain bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
300.0 mm
Bore diameter
D
430.0 mm
Outside diameter
B
165.0 mm
Width
C
120.0 mm
Width outer ring
α
7.0 °
Angle of tilt
dk
375.0 mm
Raceway diameter inner ring
b
16.0 mm
Width annular lubrication groove at outer ring
b1
16.0 mm
Width annular lubrication groove at inner ring
M
7.0 mm
Diameter lubrication hole (outer ring)
r1
1.1 mm
Chamfer dimension bore
r2
1.1 mm
Chamfer dimension outer ring
mass
77.0 kg
Product net weight
