SKF GE 35 ESX-2LS

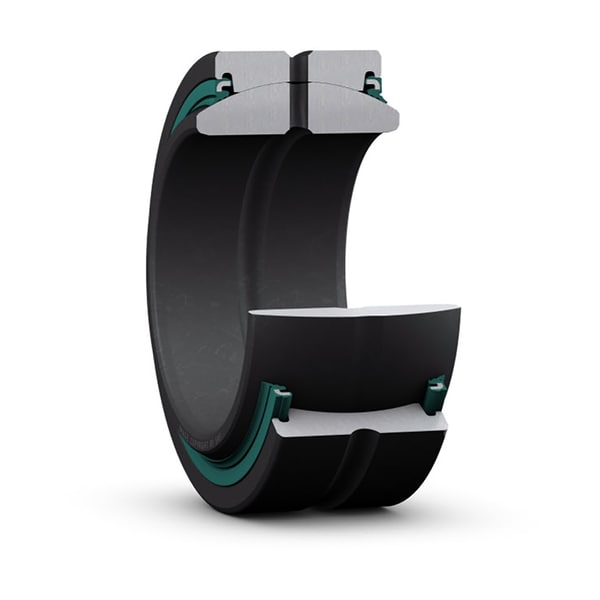

SKF Explorer radial spherical plain bearing, virtually maintenance-free, sealed, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
55.0 mm
Outside diameter
B
25.0 mm
Width
C
20.0 mm
Width outer ring
α
6.0 °
Angle of tilt
dk
47.0 mm
Raceway diameter inner ring
b
3.8 mm
Width annular lubrication groove at outer ring
b1
4.0 mm
Width annular lubrication groove at inner ring
M
2.5 mm
Diameter lubrication hole (outer ring)
r1
0.6 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
0.213 kg
Product net weight
