SKF GEC 600 FBAS

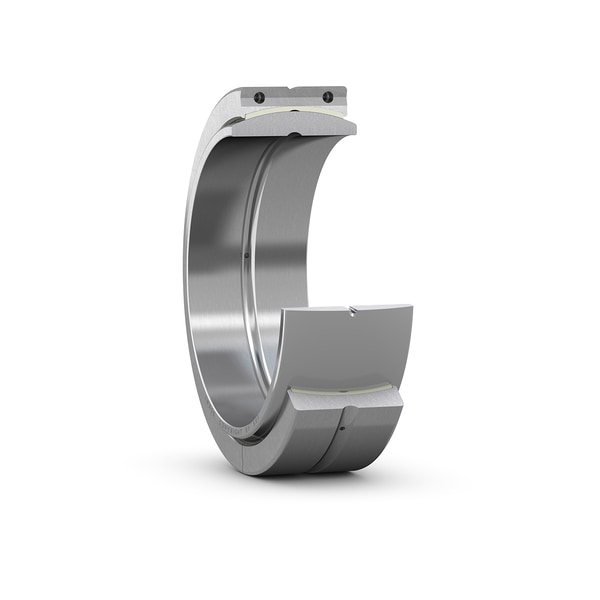

Radial spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
600.0 mm
Bore diameter
D
800.0 mm
Outside diameter
B
272.0 mm
Width
C
230.0 mm
Width outer ring
α
3.0 °
Angle of tilt
dk
700.0 mm
Raceway diameter inner ring
b
27.0 mm
Width annular lubrication groove at outer ring
b1
27.0 mm
Width annular lubrication groove at inner ring
M
10.0 mm
Diameter lubrication hole (outer ring)
r1
2.0 mm
Chamfer dimension bore
r2
5.0 mm
Chamfer dimension outer ring
mass
378.0 kg
Product net weight
