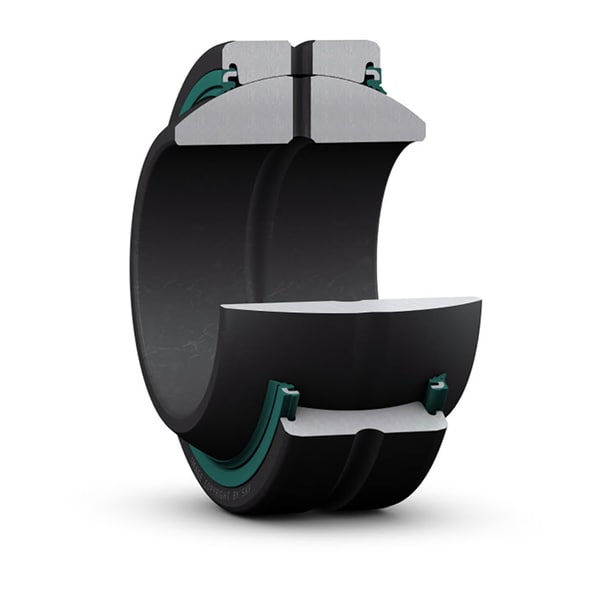

SKF GEZH 308 ES-2RS
Radial spherical plain bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
88.9 mm
Bore diameter
D
149.225 mm
Outside diameter
B
90.424 mm
Width
C
71.425 mm
Width outer ring
α
9.0 °
Angle of tilt
dk
136.906 mm
Raceway diameter inner ring
b
10.0 mm
Width annular lubrication groove at outer ring
b1
8.0 mm
Width annular lubrication groove at inner ring
M
6.5 mm
Diameter lubrication hole (outer ring)
r1
2.0 mm
Chamfer dimension bore
r2
1.0 mm
Chamfer dimension outer ring
mass
6.46 kg
Product net weight
