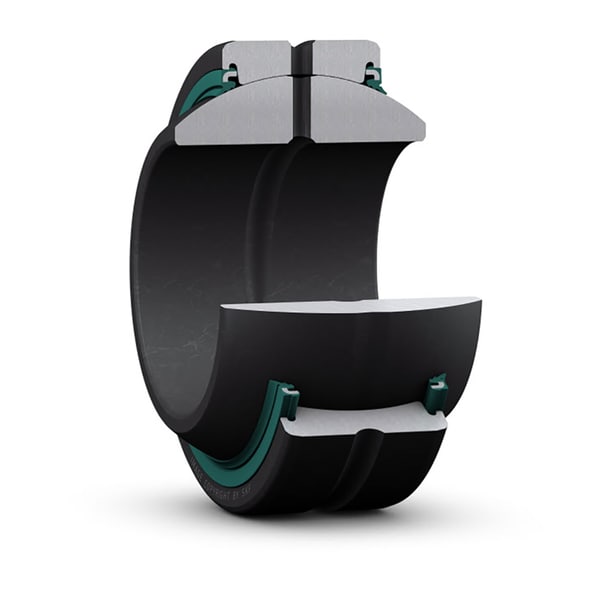

SKF GEZH 400 ES-2RS
Radial spherical plain bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
101.6 mm
Bore diameter
D
177.8 mm
Outside diameter
B
107.315 mm
Width
C
85.725 mm
Width outer ring
α
9.0 °
Angle of tilt
dk
164.465 mm
Raceway diameter inner ring
b
11.0 mm
Width annular lubrication groove at outer ring
b1
10.0 mm
Width annular lubrication groove at inner ring
M
8.0 mm
Diameter lubrication hole (outer ring)
r1
2.0 mm
Chamfer dimension bore
r2
1.1 mm
Chamfer dimension outer ring
mass
13.5 kg
Product net weight
