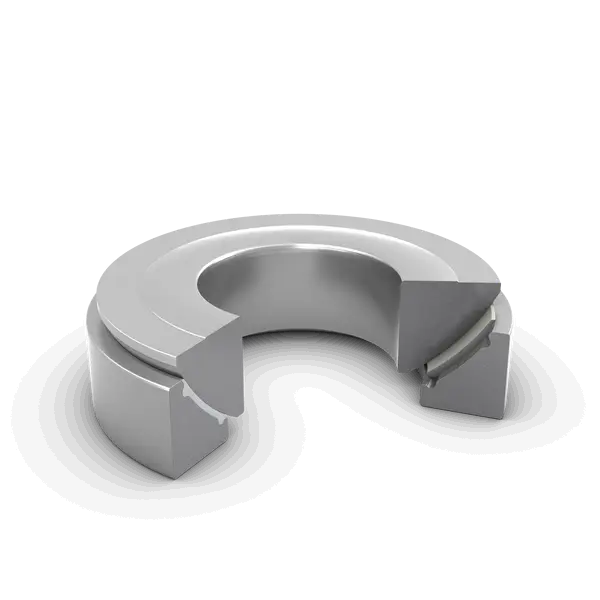

SKF GX 17 F
Thrust spherical plain bearing, maintenance-free, metric sizes
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
17.0 mm
Bore diameter
D
47.0 mm
Outside diameter
T
16.0 mm
Height
α
2.6 °
Angle of tilt
dk
52.0 mm
Raceway diameter inner ring (sphere diameter shaft washer)
d1
43.5 mm
Outside diameter inner ring (shaft washer)
D1
27.0 mm
Bore diameter outer ring (housing washer)
B
11.8 mm
Height inner ring (shaft washer)
C
11.2 mm
Height outer ring (housing washer)
r1
0.6 mm
Chamfer dimension
s
11.0 mm
Distance sphere diameter centre - shaft washer back face (large inner ring side face)
mass
0.152 kg
Product net weight
