SKF GX 40 F

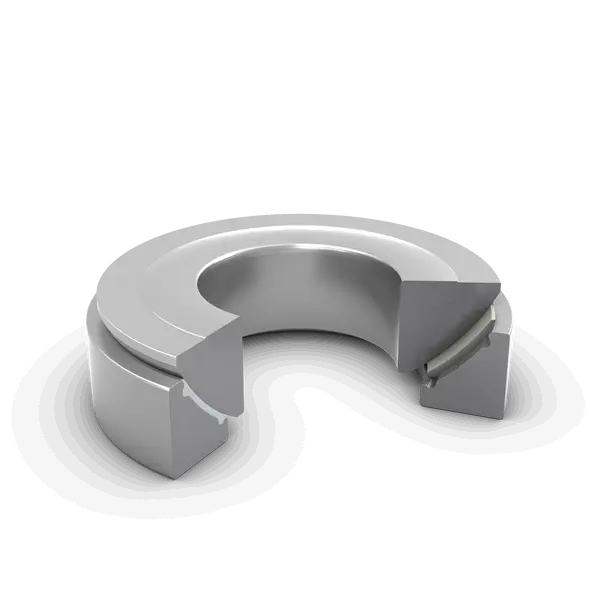

Thrust spherical plain bearings

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

d 40.0 mm Bore diameter

D 105.0 mm Outside diameter

T 32.0 mm Height

α 5.8 ° Angle of tilt

d_k 114.0 mm Raceway diameter inner ring (sphere diameter shaft washer)

d₁ 97.0 mm Outside diameter inner ring (shaft washer)

D₁ 59.0 mm Bore diameter outer ring (housing washer)

B 27.0 mm Height inner ring (shaft washer)

C 21.5 mm Height outer ring (housing washer)

r₁ 1.0 mm Chamfer dimension

s 24.5 mm Distance sphere diameter centre - shaft washer back face (large inner ring side face)

mass 1.55 kg Product net weight
