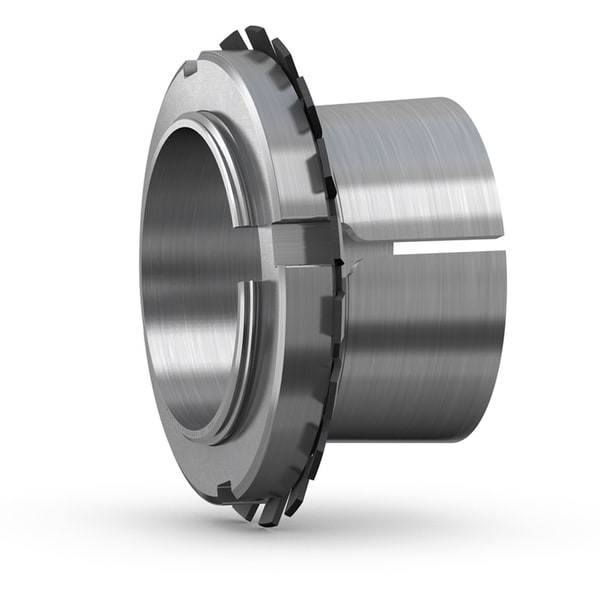

SKF H 3120
Adapter sleeve with KM lock nut and MB lock washer, metric dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
90.0 mm
Bore diameter
d
100.0 mm
Outside diameter small taper
d3
130.0 mm
Outside diameter lock nut
B1
76.0 mm
Width
B
18.0 mm
Width lock nut
B4
20.0 mm
Width lock nut including lock washer
G
M100x2
Thread
mass
1.72 kg
Product net weight
