SKF HH 224335/310

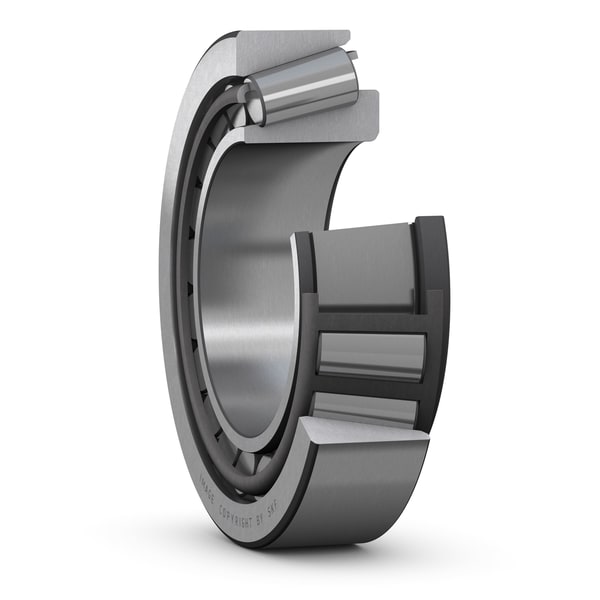

Single row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
101.6 mm
Bore diameter
D
212.725 mm
Outside diameter
T
66.675 mm
Total width
d1
158.1 mm
Shoulder diameter of inner ring
B
66.675 mm
Width of inner ring
C
53.975 mm
Width of outer ring
r1,2
7.0 mm
Chamfer dimension of inner ring
r3,4
3.3 mm
Chamfer dimension of outer ring
a
46.93 mm
Distance side face to pressure point
mass
11.3 kg
Product net weight
