SKF HJ 326 EC
Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design
Dimensions

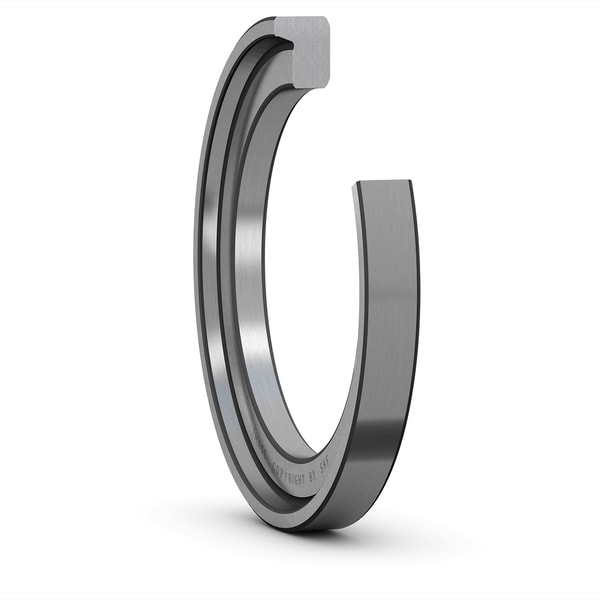

SKF HJ 326 EC Angle Ring for Cylindrical Roller Bearings
The SKF HJ 326 EC is an angle ring in the L-shaped thrust collars product series. It is described as an angle ring for single row cylindrical roller bearings in NU or NJ design.
What is the HJ 326 EC?
The HJ 326 EC is an SKF angle ring, also referred to as an L-shaped thrust collar, intended for use with the specified single row cylindrical roller bearing designs.
HJ 326 EC Dimensions and Product Data
- Model: HJ 326 EC
- Brand: SKF
- Series: Angle rings (L-shaped thrust collars)
- Bore diameter d: 130.0 mm
- Outside diameter d1: 182.0 mm
- Width B1: 14.0 mm
- Width contacting inner ring side face B2: 23.0 mm
- Chamfer length radial direction r3,4: 4.0 mm
- Product net weight: 1.65 kg
What dimensions are provided for the HJ 326 EC?
The supplied data lists a 130.0 mm bore, 182.0 mm outside diameter, 14.0 mm width B1, 23.0 mm width B2, and 4.0 mm radial chamfer length. The stated net mass is 1.65 kg.
SKF Bearing Component Category Information
The HJ 326 EC is classified under Brand > SKF > Bearings > Roller bearings > Angle rings (L-shaped thrust collars). The product data identifies it as a component for NU or NJ design single row cylindrical roller bearings.
Which bearing design is the HJ 326 EC associated with?
According to the supplied product information, the HJ 326 EC is an angle ring for single row cylindrical roller bearings of NU or NJ design. Compatibility should be checked against the relevant bearing arrangement or documentation.
