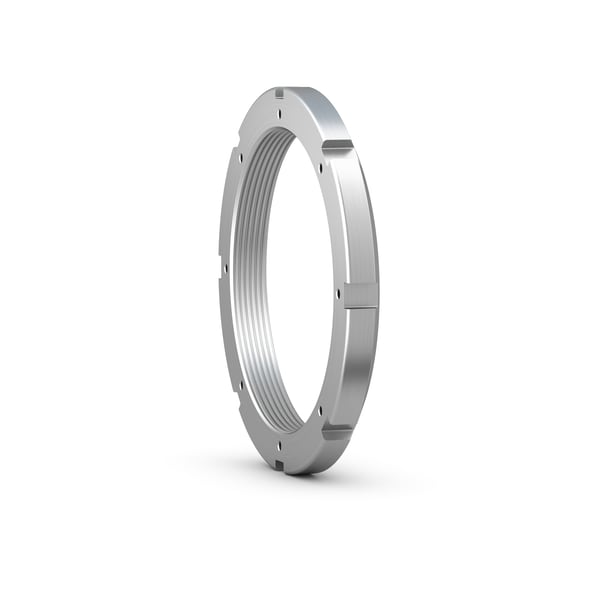

SKF HM 30/1000
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 1000x8
Thread
d3
1140.0 mm
Outside diameter
B
100.0 mm
Width
d1
1085.0 mm
Diameter locating side face
d2
1040.0 mm
Pitch diameter threaded holes for locking clip
B5
125.0 mm
Width including locking clip
b
60.0 mm
Width locating slot
h
25.0 mm
Depth locating slot
mass
178.0 kg
Product net weight
