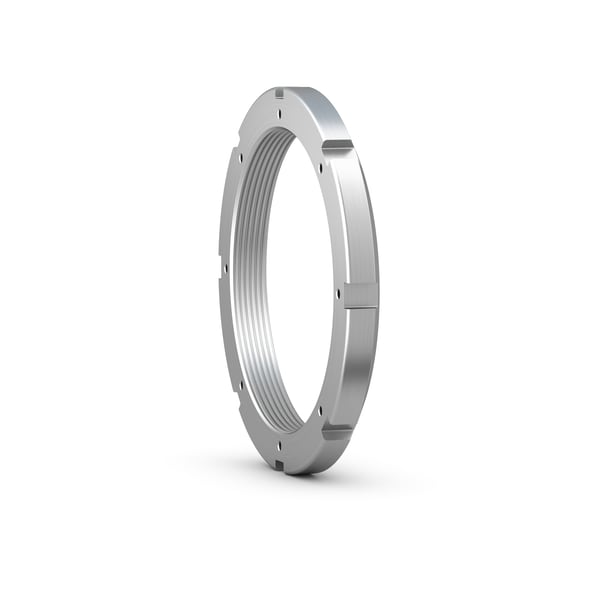

SKF HM 30/530
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
Tr 530x6
Thread
d3
630.0 mm
Outside diameter
B
68.0 mm
Width
d1
590.0 mm
Diameter locating side face
d2
558.0 mm
Pitch diameter threaded holes for locking clip
B5
90.0 mm
Width including locking clip
b
40.0 mm
Width locating slot
h
20.0 mm
Depth locating slot
mass
43.0 kg
Product net weight
