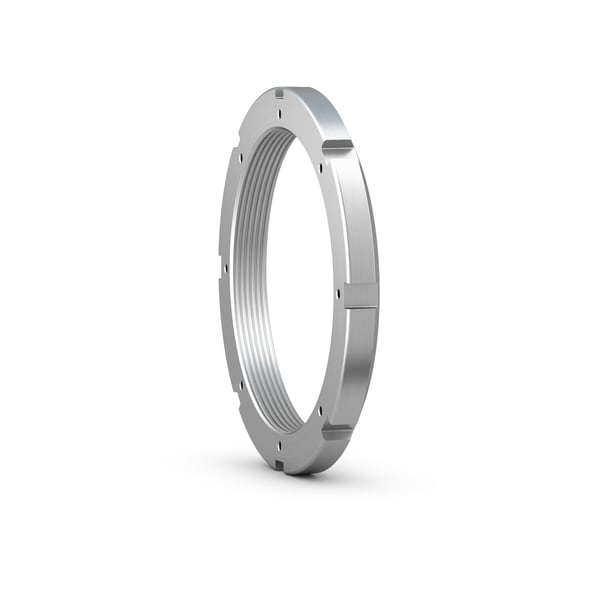

SKF HM 3052
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 260x4
Thread
d3
310.0 mm
Outside diameter
B
34.0 mm
Width
d1
290.0 mm
Diameter locating side face
d2
273.0 mm
Pitch diameter threaded holes for locking clip
B5
46.0 mm
Width including locking clip
b
20.0 mm
Width locating slot
h
10.0 mm
Depth locating slot
mass
4.9 kg
Product net weight
