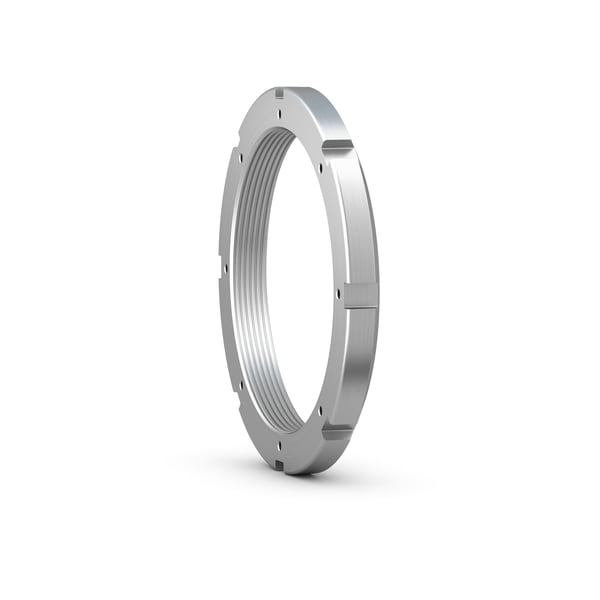

SKF HM 3064
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 320x5
Thread
d3
380.0 mm
Outside diameter
B
42.0 mm
Width
d1
356.0 mm
Diameter locating side face
d2
336.0 mm
Pitch diameter threaded holes for locking clip
B5
55.0 mm
Width including locking clip
b
24.0 mm
Width locating slot
h
12.0 mm
Depth locating slot
mass
8.98 kg
Product net weight
