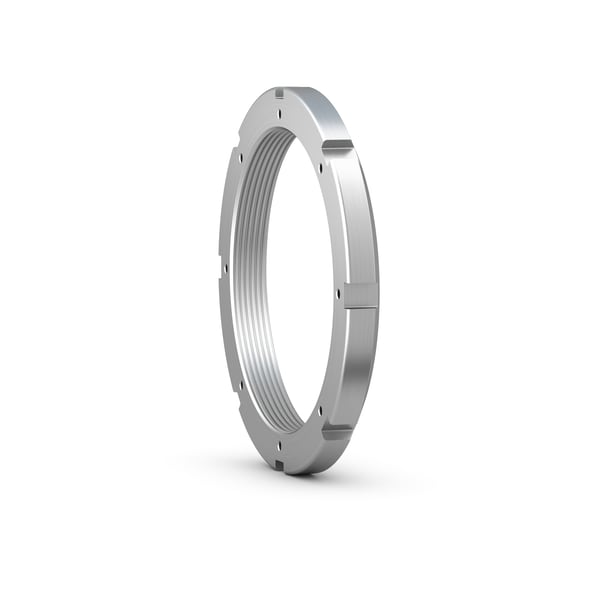

SKF HM 3088
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 440x5
Thread
d3
520.0 mm
Outside diameter
B
60.0 mm
Width
d1
490.0 mm
Diameter locating side face
d2
463.0 mm
Pitch diameter threaded holes for locking clip
B5
77.0 mm
Width including locking clip
b
32.0 mm
Width locating slot
h
15.0 mm
Depth locating slot
mass
24.0 kg
Product net weight
