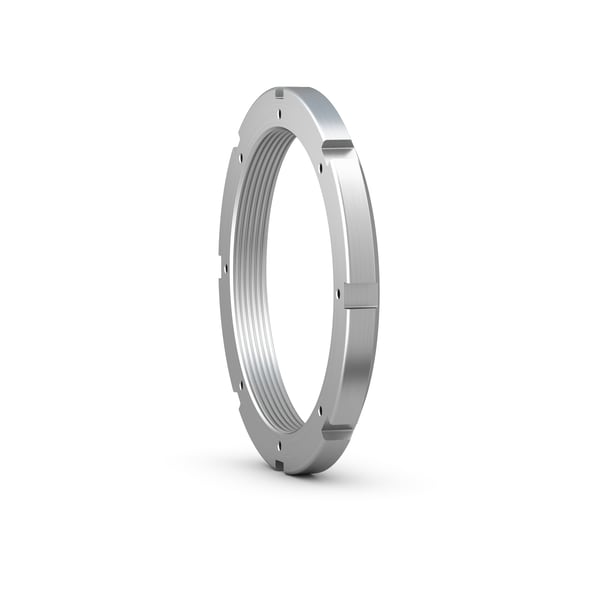

SKF HM 31/670
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
Tr 670x6
Thread
d3
850.0 mm
Outside diameter
B
106.0 mm
Width
d1
775.0 mm
Diameter locating side face
d2
730.0 mm
Pitch diameter threaded holes for locking clip
B5
131.0 mm
Width including locking clip
b
50.0 mm
Width locating slot
h
28.0 mm
Depth locating slot
mass
167.0 kg
Product net weight
