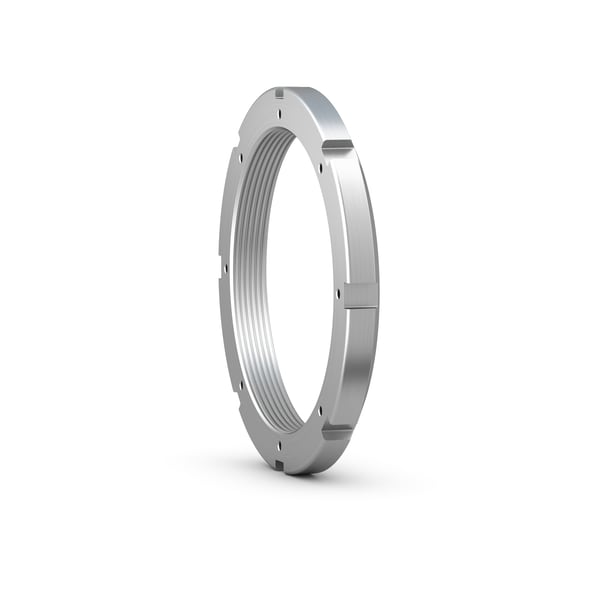

SKF HM 31/710
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 710x7
Thread
d3
900.0 mm
Outside diameter
B
106.0 mm
Width
d1
825.0 mm
Diameter locating side face
d2
772.0 mm
Pitch diameter threaded holes for locking clip
B5
133.0 mm
Width including locking clip
b
55.0 mm
Width locating slot
h
30.0 mm
Depth locating slot
mass
186.0 kg
Product net weight
