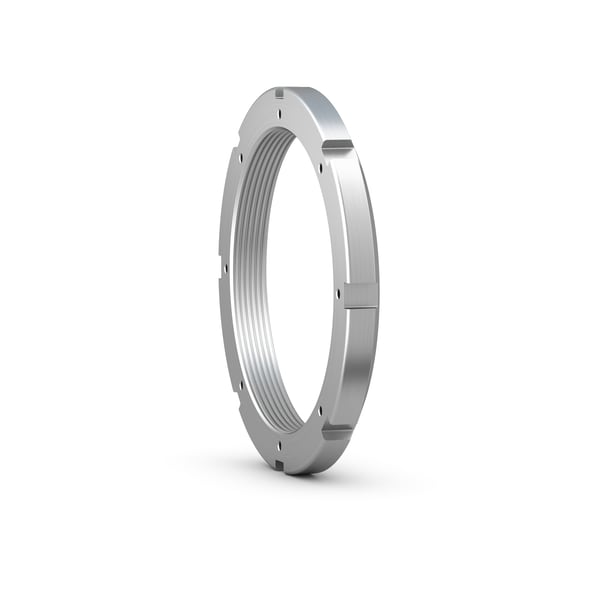

SKF HM 31/850
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 850x7
Thread
d3
1060.0 mm
Outside diameter
B
118.0 mm
Width
d1
975.0 mm
Diameter locating side face
d2
914.0 mm
Pitch diameter threaded holes for locking clip
B5
145.0 mm
Width including locking clip
b
70.0 mm
Width locating slot
h
38.0 mm
Depth locating slot
mass
268.0 kg
Product net weight
