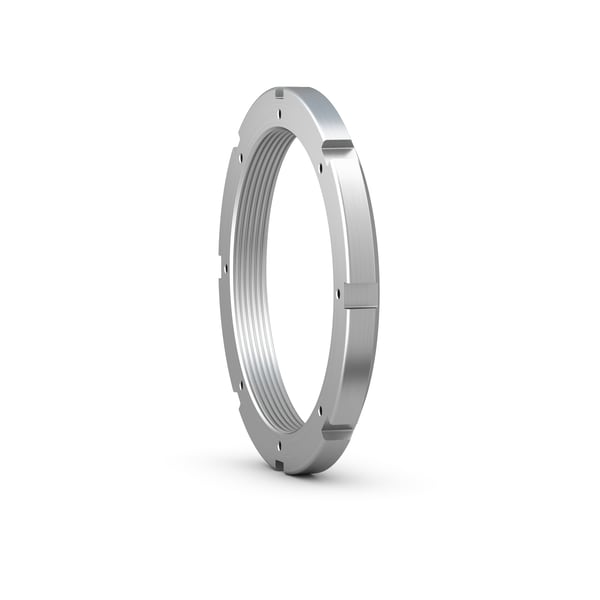

SKF HM 3172
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
Tr 360x5
Thread
d3
460.0 mm
Outside diameter
B
58.0 mm
Width
d1
420.0 mm
Diameter locating side face
d2
393.0 mm
Pitch diameter threaded holes for locking clip
B5
75.0 mm
Width including locking clip
b
28.0 mm
Width locating slot
h
15.0 mm
Depth locating slot
mass
24.1 kg
Product net weight
