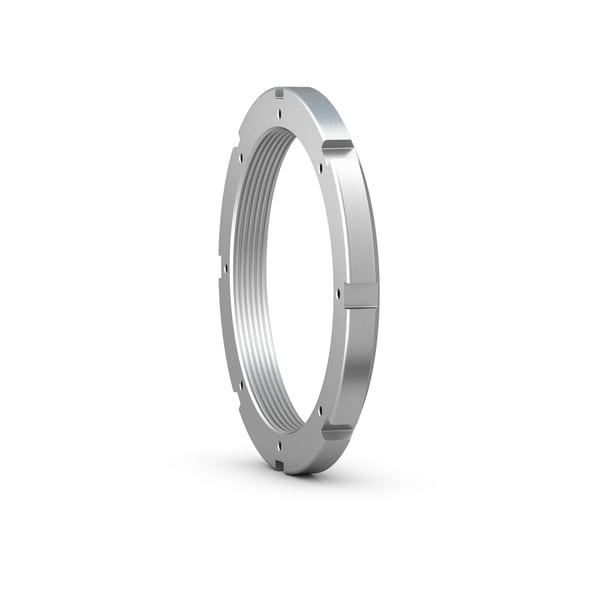

SKF HM 3196
Lock nut with metric trapezoidal thread, for locking by clip
(BRAND)：SKF
(Availability)：In Stock
Dimensions
G
Tr 480x5
Thread
d3
620.0 mm
Outside diameter
B
75.0 mm
Width
d1
560.0 mm
Diameter locating side face
d2
528.0 mm
Pitch diameter threaded holes for locking clip
B5
95.0 mm
Width including locking clip
b
36.0 mm
Width locating slot
h
20.0 mm
Depth locating slot
mass
62.0 kg
Product net weight
