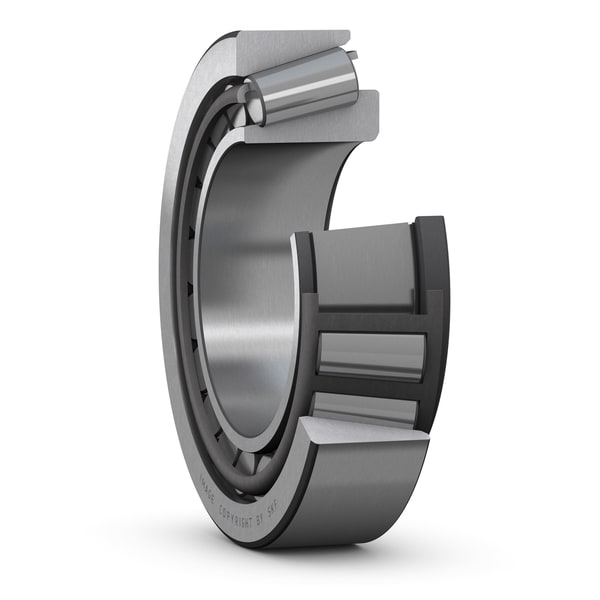

SKF HM 801346/310
Single row tapered roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
38.1 mm
Bore diameter
D
82.55 mm
Outside diameter
T
29.37 mm
Total width
d1
64.1 mm
Shoulder diameter of inner ring
B
28.575 mm
Width of inner ring
C
23.02 mm
Width of outer ring
r1,2
0.8 mm
Chamfer dimension of inner ring
r3,4
3.3 mm
Chamfer dimension of outer ring
a
24.155 mm
Distance side face to pressure point
mass
0.785 kg
Product net weight
