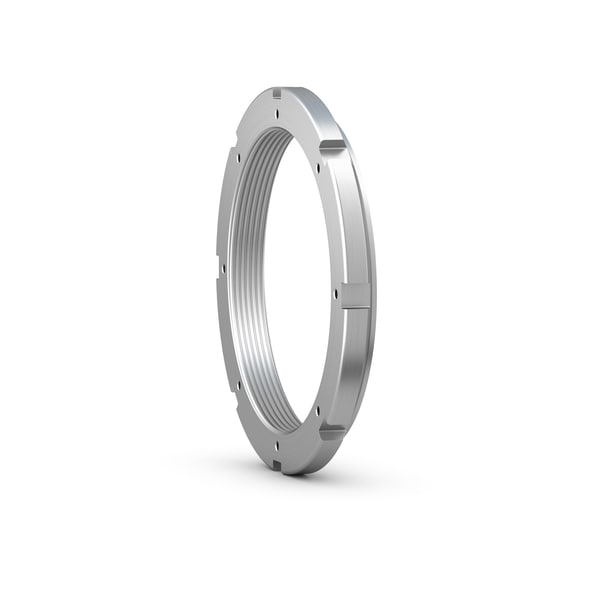

SKF HME 30/560
Lock nut
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
G
Tr 560x6
Thread
d3
650.0 mm
Outside diameter
B
75.0 mm
Width
d1
610.0 mm
Diameter locating side face
d2
583.0 mm
Pitch diameter threaded holes for locking clip
B3
15.0 mm
Stand-out of locating face
B5
97.0 mm
Width including locking clip
b
40.0 mm
Width locating slot
h
20.0 mm
Depth locating slot
mass
44.5 kg
Product net weight
